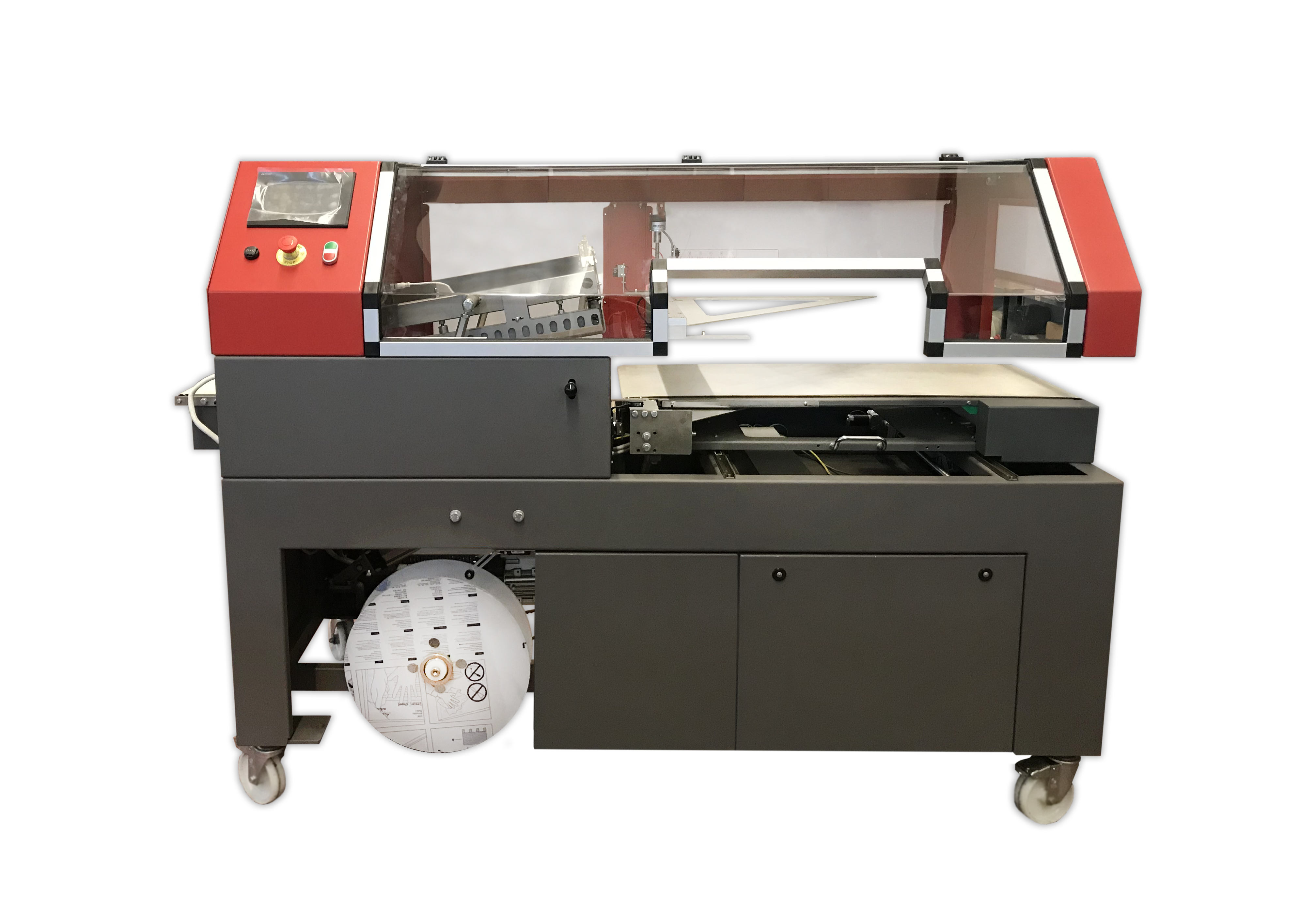

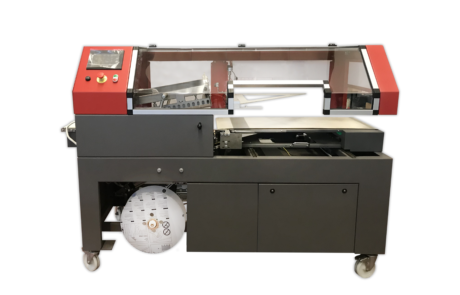

These high-tech automatic corner packaging machines are characterized by their excellent value for money, functionality and modularity. They include the functionality of the belt approach system. Also, the CC 6040 model allows horizontal welding to always be at the center of the product thanks to the movement of the welding unit. All the models in this range, in fact, can be supplied with or without a shrink tunnel.

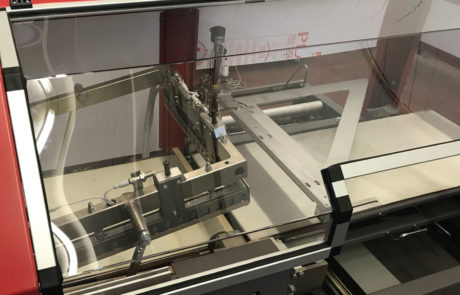

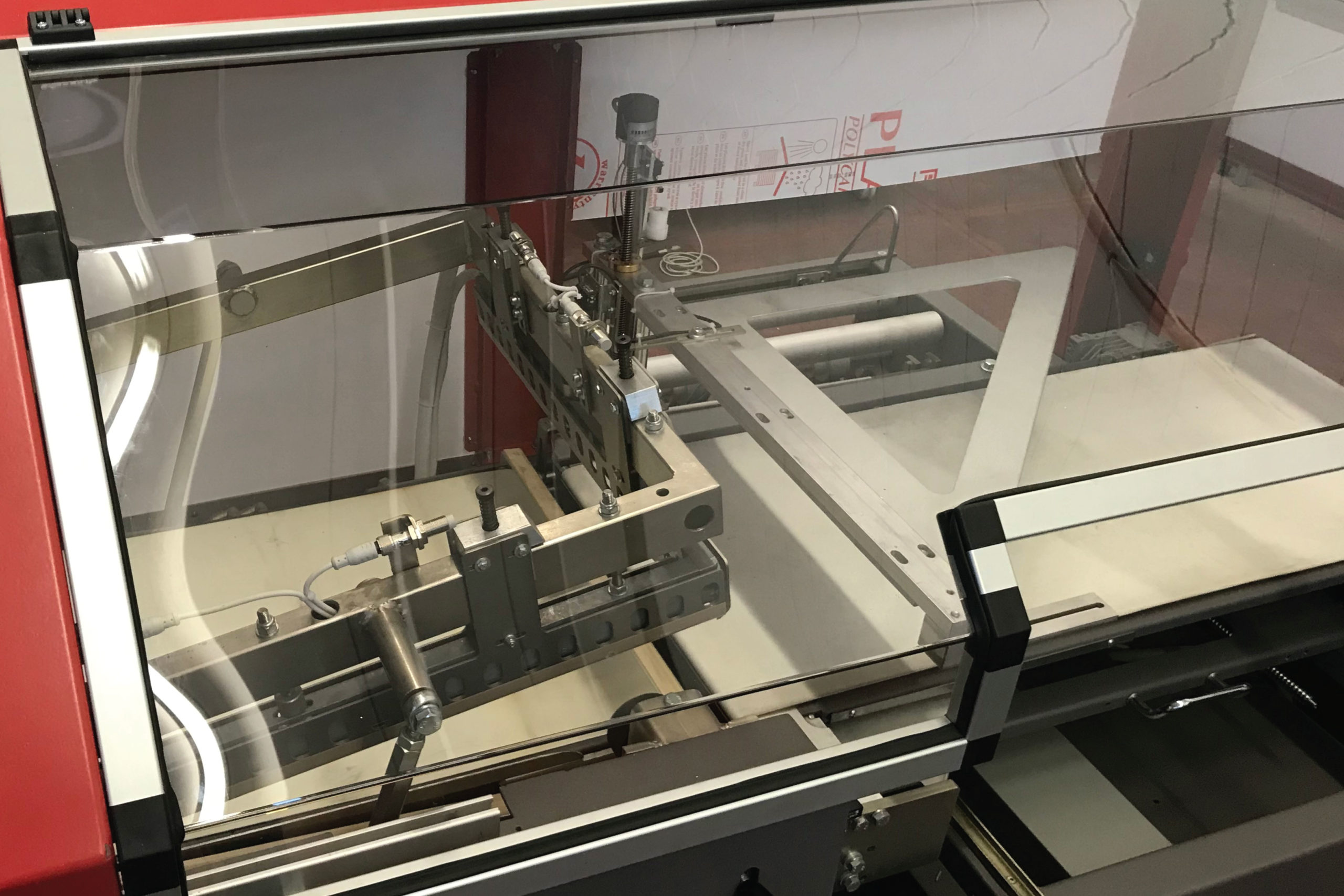

- Motorized welding centering system (Center Sealing) adjustable from operator panel
- Angular packaging machine FULL ELETRIC
- PTFE-treated soldering blade
- Emergency buttons
- Winder and motorized scrap recovery
- Control logic managed by Plc
- Safety devices
- Electrical triangles height adjustment from operator panel
- Continuous cycle welding system
- Possibility to pack single packages or groups of products

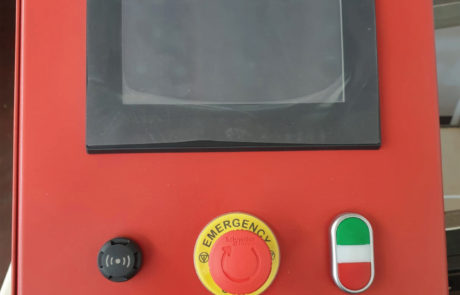

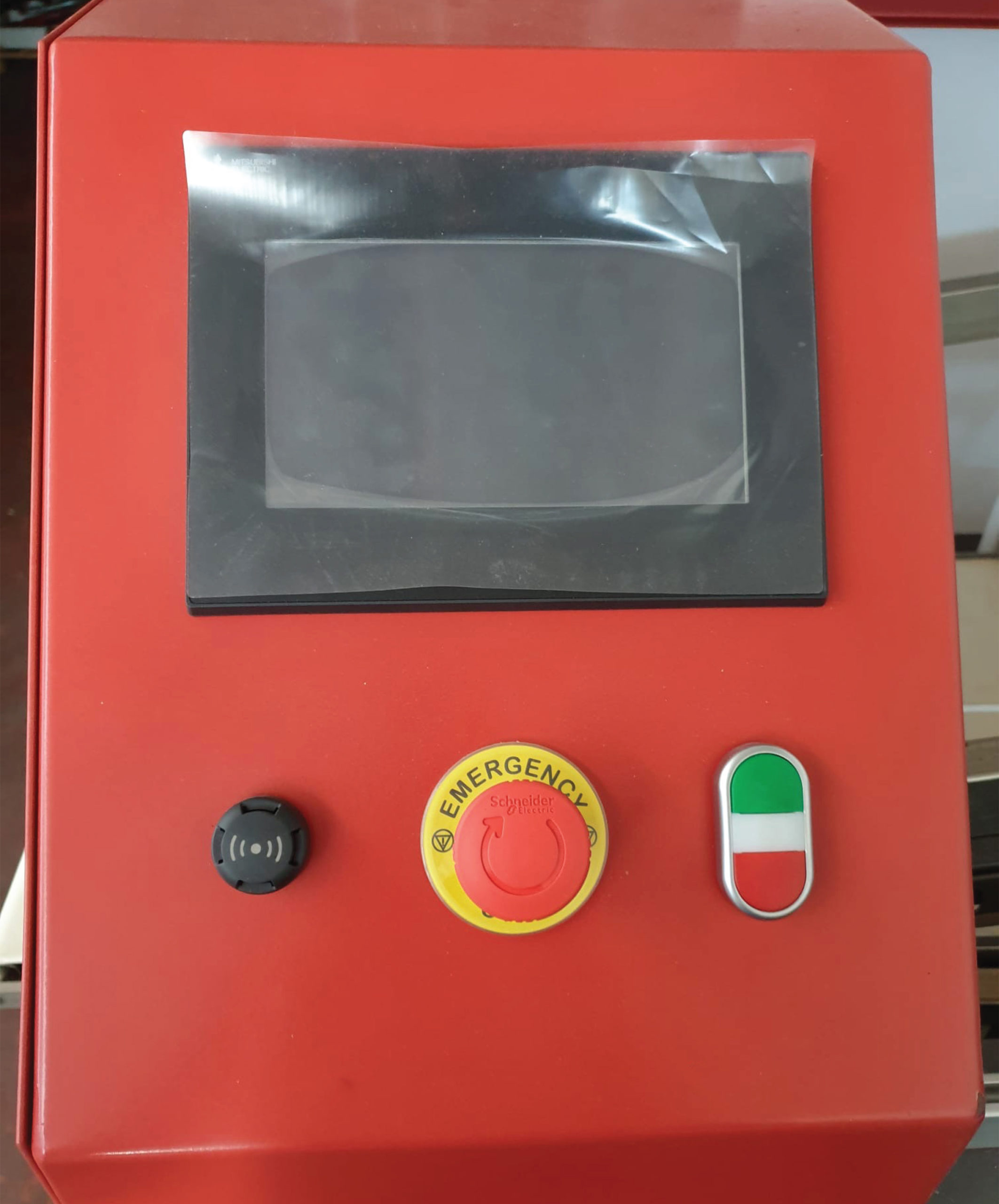

- 7 inch 5 language touch screen control panel
- High Ten carpet approaching device (Optional)
- Film micro perforators
- Welding time adjustment
- Possibility to memorize up to 20 different work cycles
- Double blade temperature adjustment through operator panel
- Position of the motorized loading conveyor adjustable from the operator panel (Optional)
- Continuous load (Multipack)
- General automatic and function control at star machine start

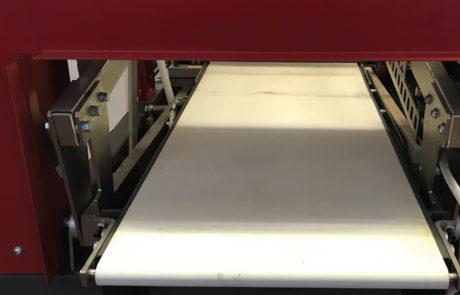

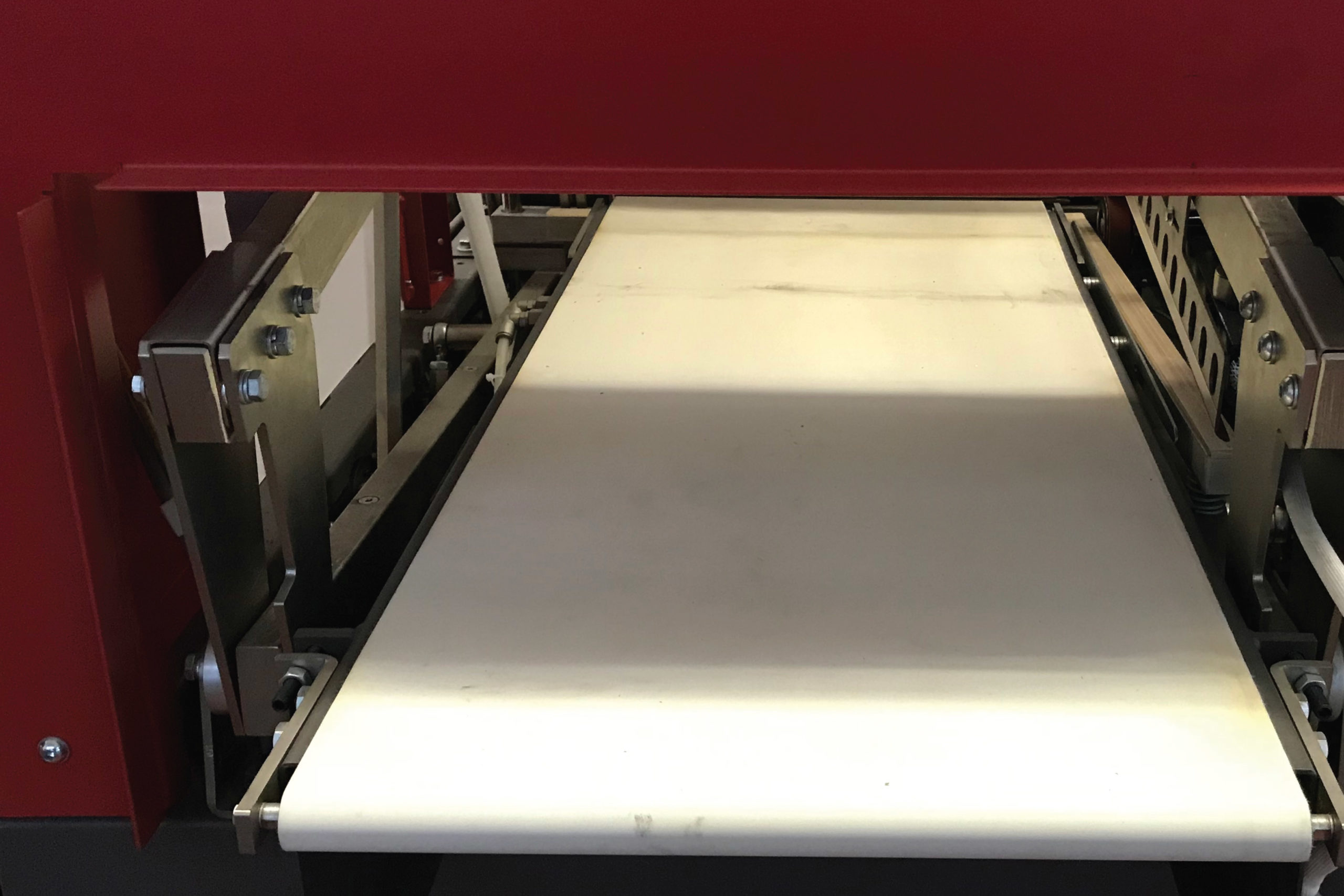

- Adjustable conveyor belt speeds through inverter from operator panel
- Piece counter (partial/life)
- Connector for interface with loading belt (Optional)
- Remote assistance module (Optional)
- Instant production
- Standard carpets in compliance with the strictest regulations in force in the food sector (FDA) completely antistatic
- Reading of the product through vertical and horizontal photocells
- Film usable Polyolefins and Polyethylene
- Alarms viewable through panel operator, acoustic and machine stop signaling
- Control logic with operator safety devices
- Machine protected by micro safety cover
- Machine on adjustable wheels or feet
- CE regulatory compliance
- Also available in stainless steel on request
| DESCRIPTION | U . M | CC 6040 – 4.0 Eletric |
|---|---|---|
| MAX PACKAGING DIMENSION | mm W x L x H | 600 x 400 x 220 |
| MAXIMUM PRODUCTION | PPH | 5 / 1800 |
| AVAILABLE DIMENSIONS OF THE SEALING BARS | mm | 520 X 620 |
| POWER INSTALLED | Kw | 3 |
| TOTAL ABSORBED PRODUCTION | Kw | 2,5 |
| SPEED OF CONVEYORS | M / Min | 9 / 30 |
| MAXIMUM DIAMETER OF FILM REEL | mm | 350 |
| MAXIMUM WIDTH OF FILM REEL | mm | 650 |
| WEIGHT | Kg | 730 |
| HEIGHT ENTRANCE TAPE | mm | 900 |
| MACHINE DIMENSIONS (GUARDS CLOSED) | mm | 2050 x 1600 x 1500 |
| SUPPLY | PH | 380 V |
| MACHINE DIMENSIONS (GUARDS OPEN) | mm | 2050 x 1600 x 2100 |
| POWER SUPPLY | V |
220 – 240 / 380 – 415 V 3PH + PE / 3PH + N + PE |
